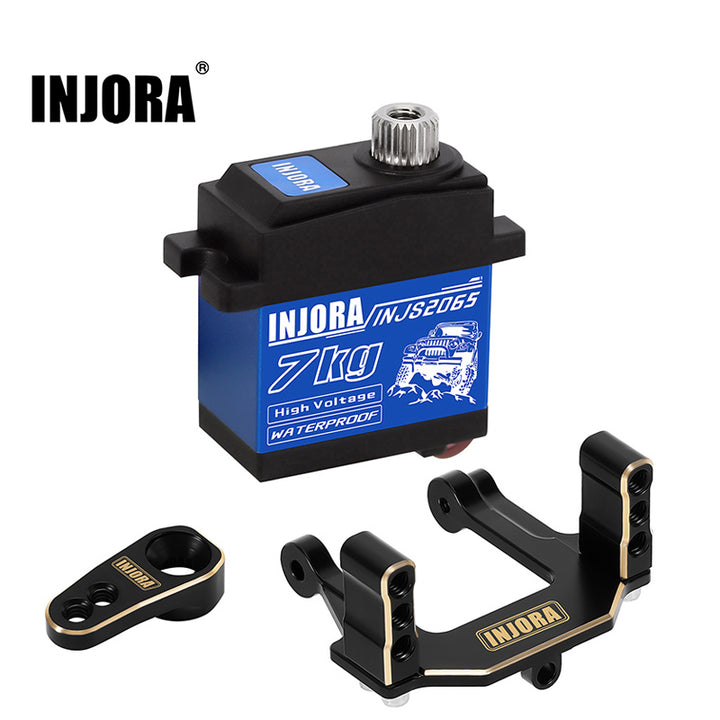

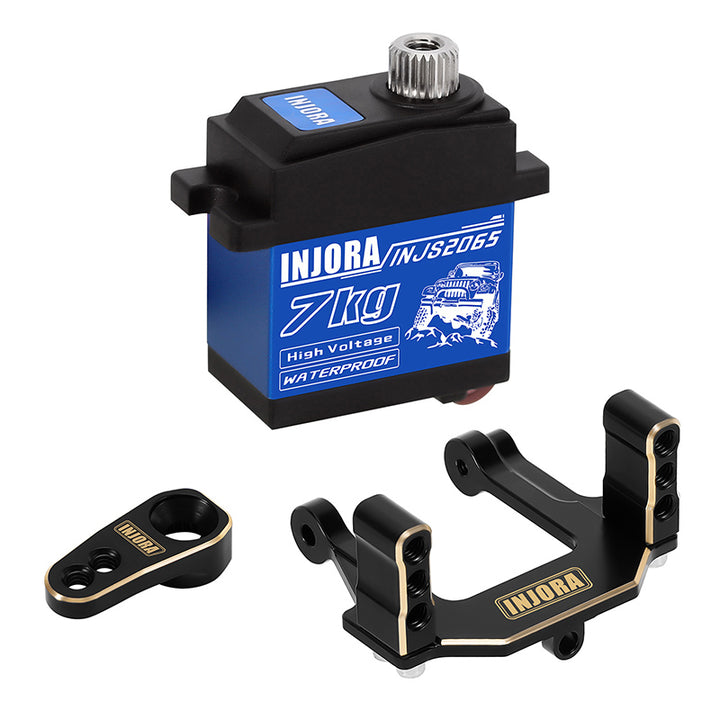

INJORA 7KG High Voltage Waterproof 2065 Digital Servo with Mount for 1/18 Redcat Ascent-18
Note: The servo horn is only compatible with INJORA INJS2065 Servo
Features:
- High voltage and digital 2065 servo
- IP66 waterproof design
- Stainless steel gears and lower noise

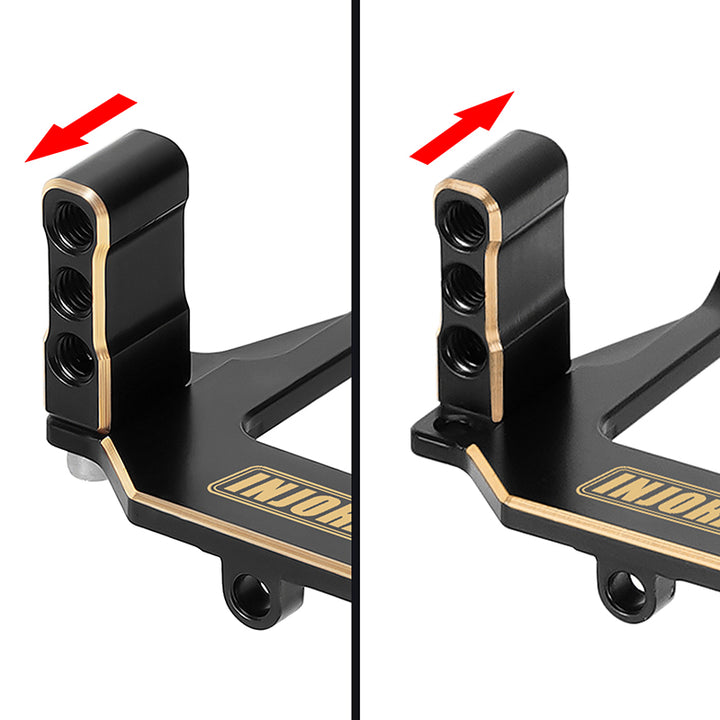

- Servo mount is two-position adjustable design

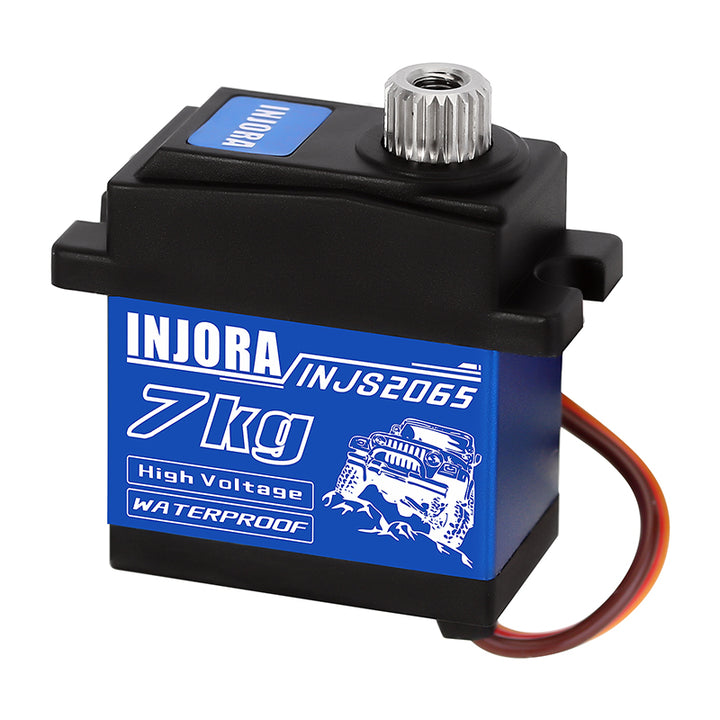

Servo Specifications:
- Part Number: INJS2065
- Dead band: 2μs
- Neutral Position: 1500μs/330hz
- Motor: Core Motor
- Remote Control Angle: 90-120°±2°
- 500-2500μs Angle: 180°±2°
- Voltage Range: 4.8V-8.4V
- Operating Speed(6.0V): 0.09''/60°
- Operating Speed(8.4V): 0.06''/60°
- Stall Torque(6.0V): 6.0 kg.cm/83.3oz.in
- Stall Torque(8.4V): 7.0 kg.cm/97.2oz.in
- Weight: 20g
- Bearing: 1BB
- Dimensions: 23*13*25.8mm
- Connector Wire Length: JR 300 mm

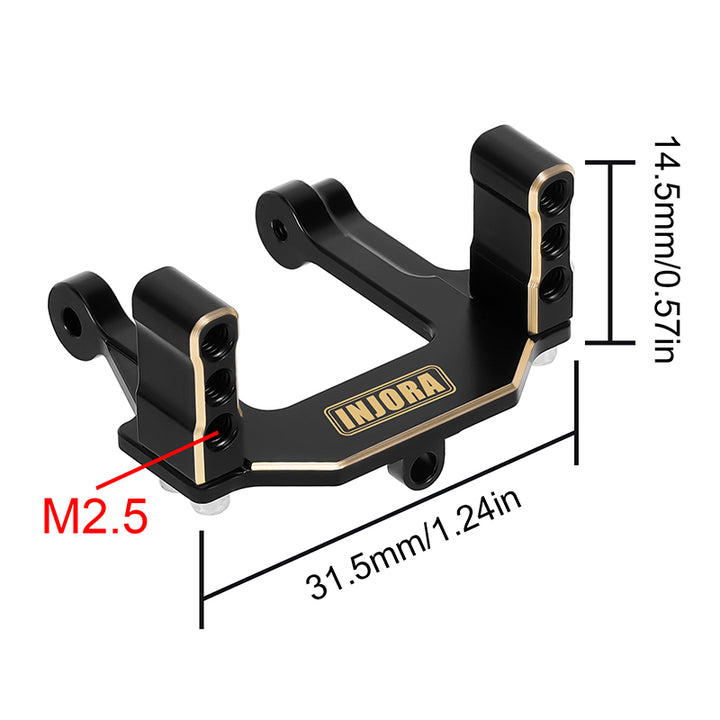

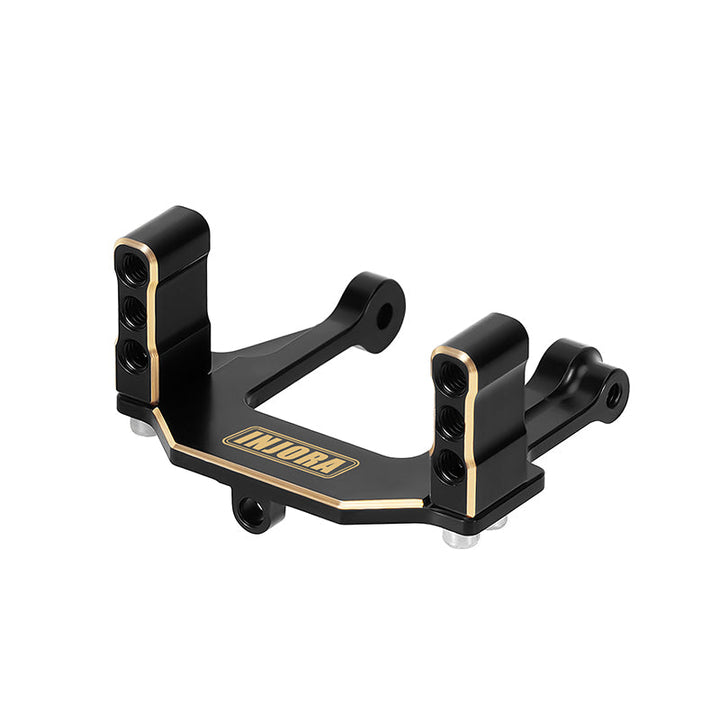

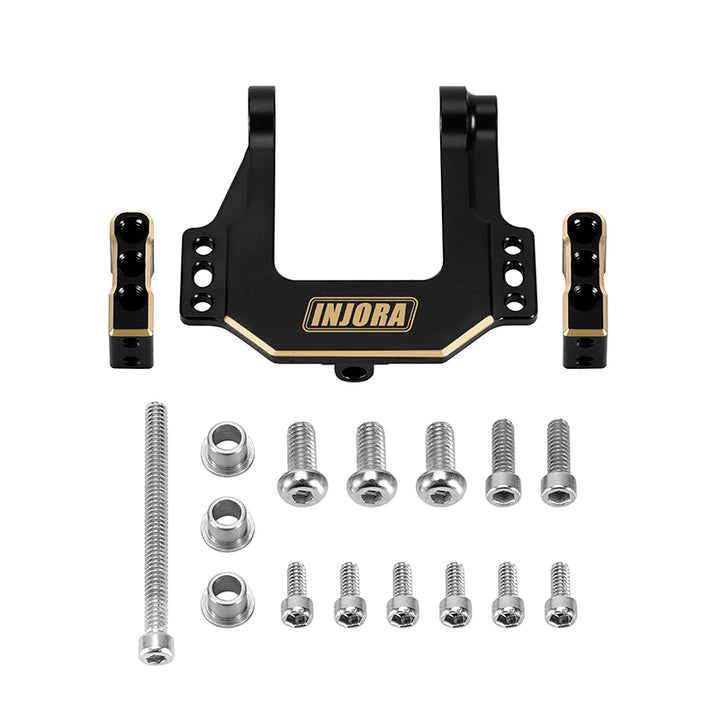

Servo Mount Specifications:
- Part Number: ASC18-13
- Material: Brass
- Weight: 10g

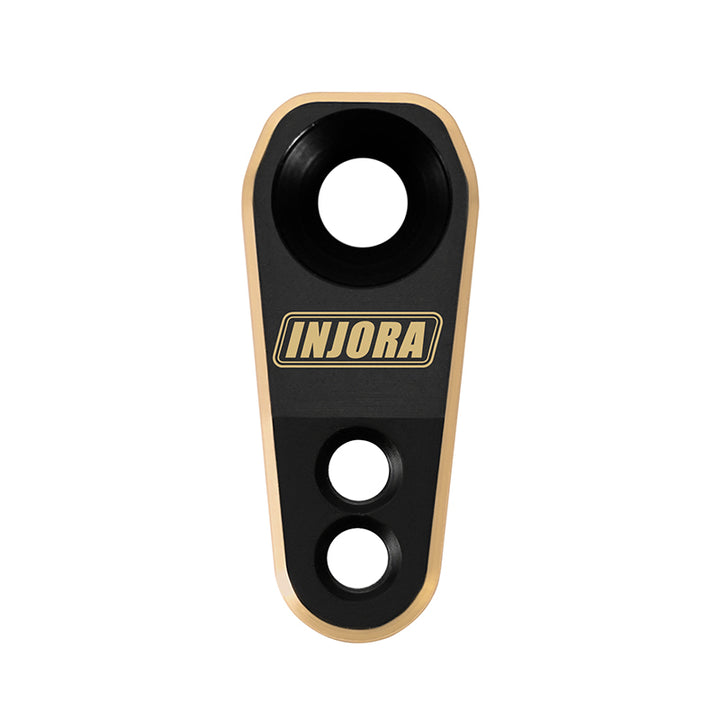

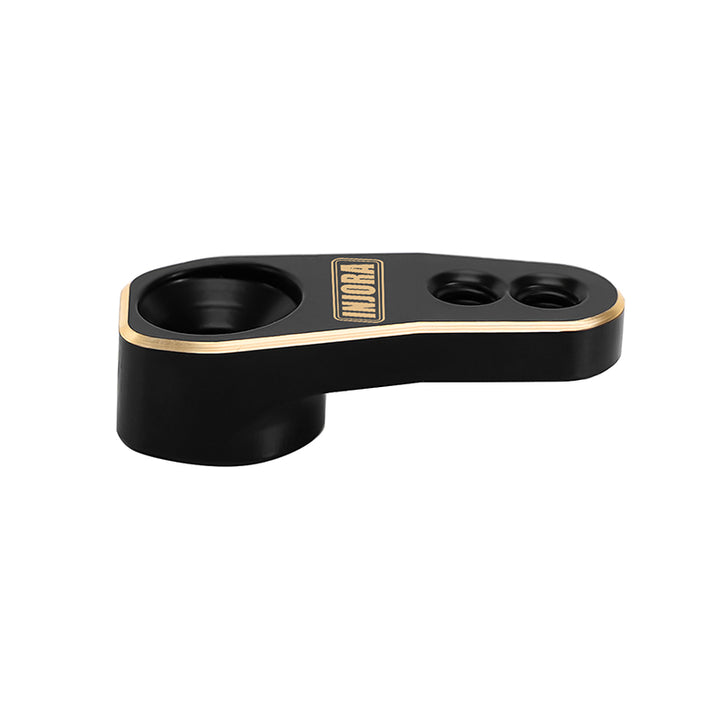

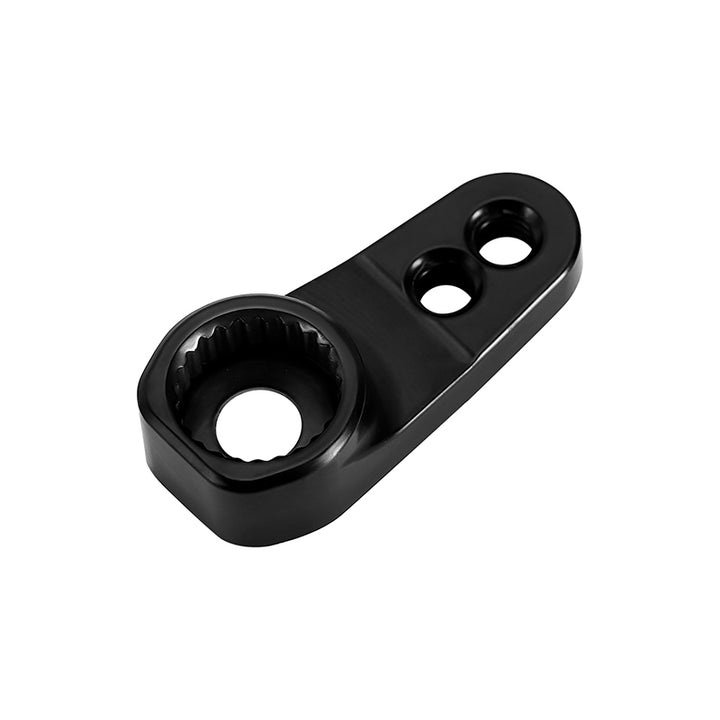

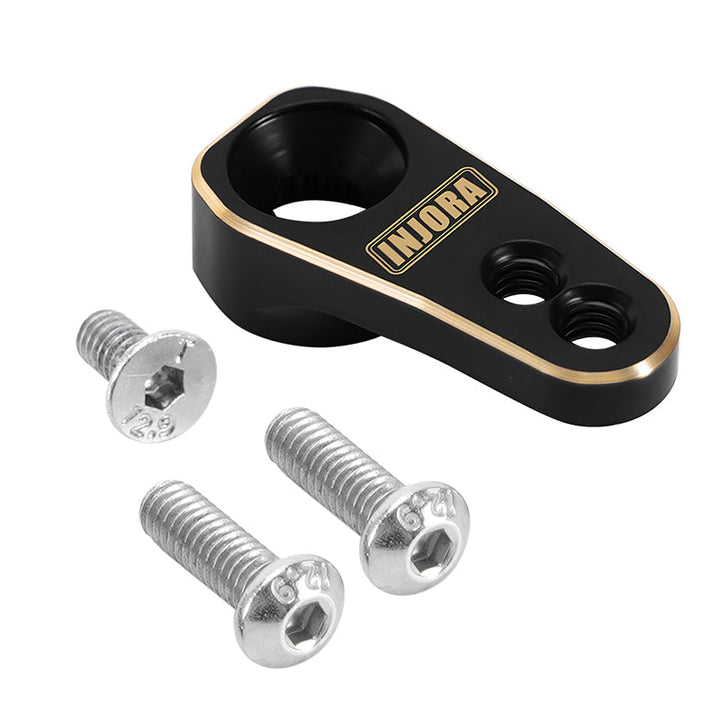

Servo Horn Specifications:
- Material: Brass
- Weight: 2.3g
- Screw hole size: M2
