PRODUCT DETAILS

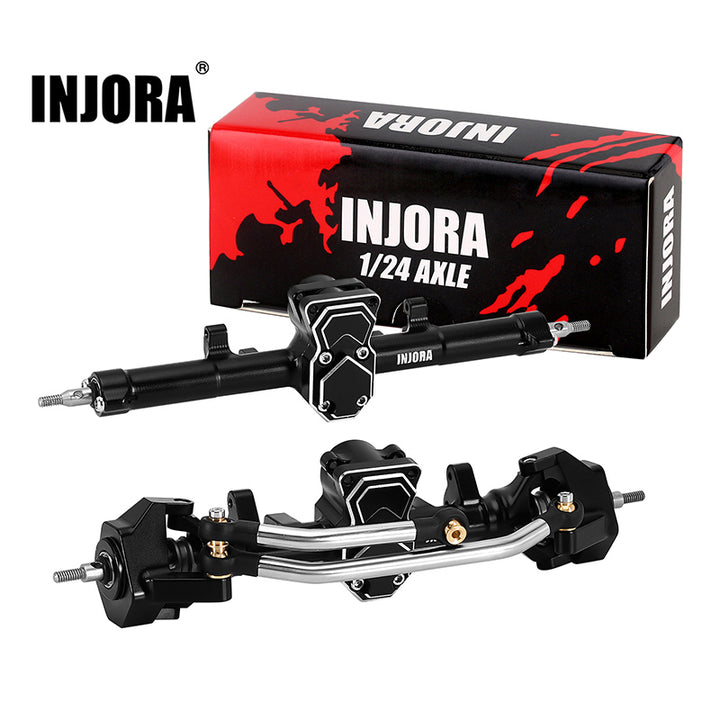

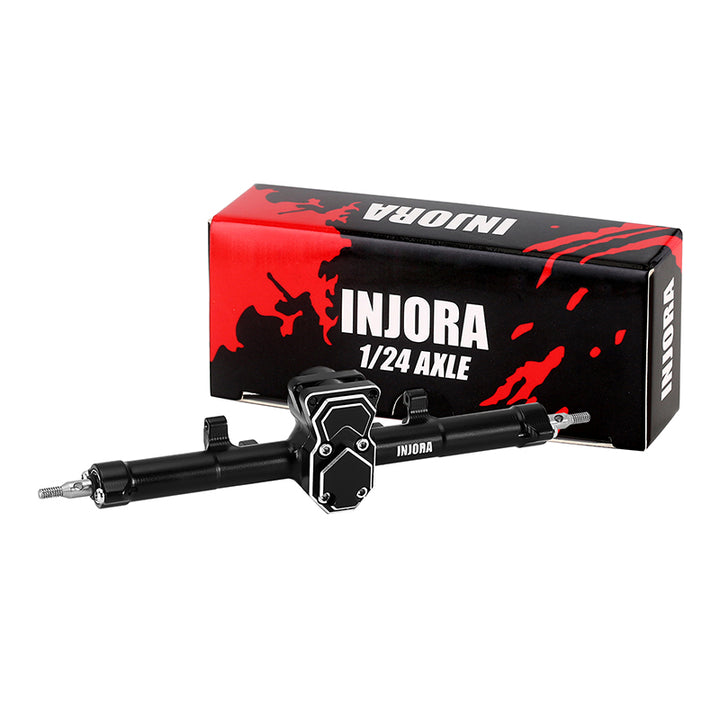

INJORA ProSteer Double Joint Axle for 1/24 Axial SCX24 (Aluminum)
Note:

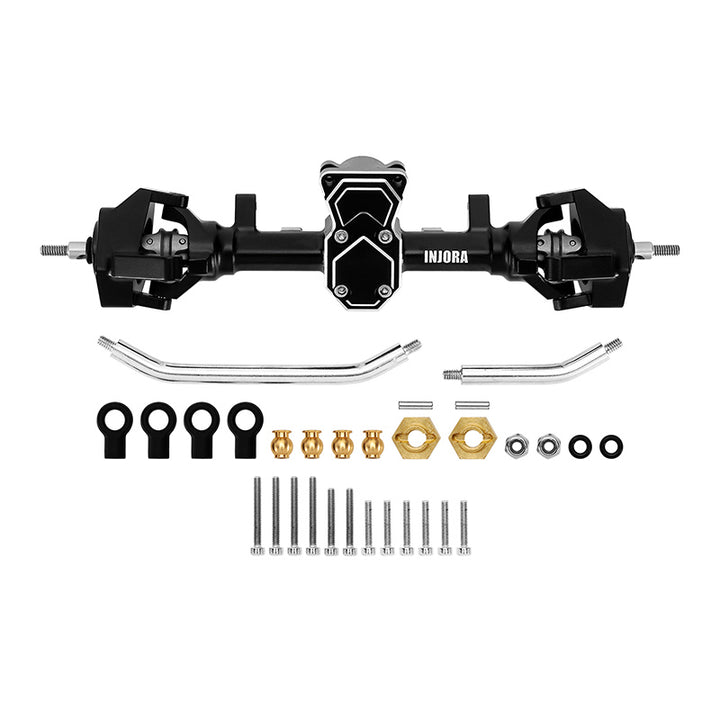

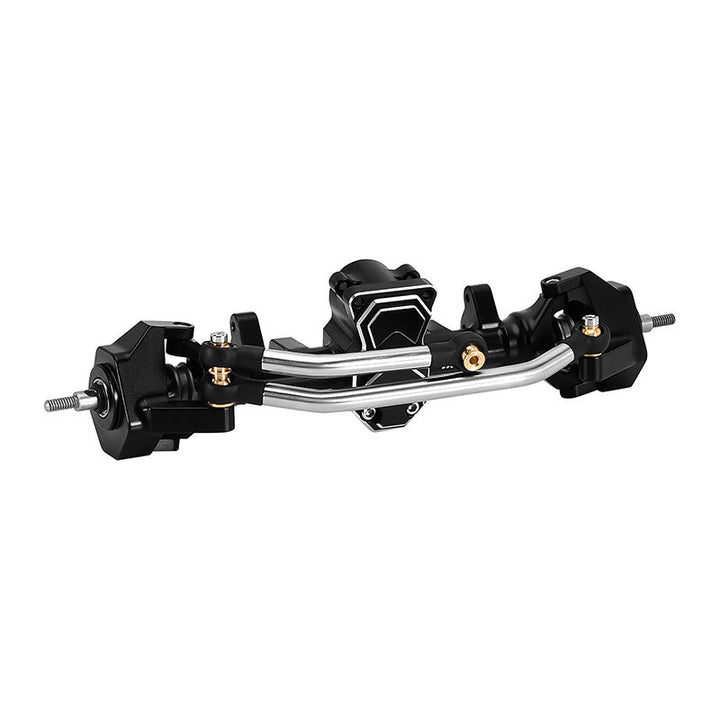

- Front axle: The design of our ProSteer double joint front axle is different from other axles, so all its parts are not compatible with other axles except for the diff gears and diff cover.

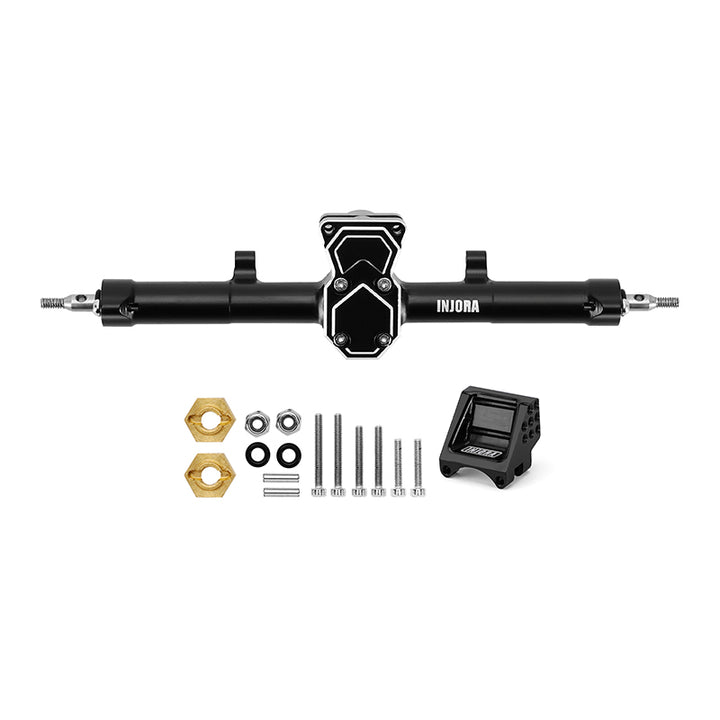

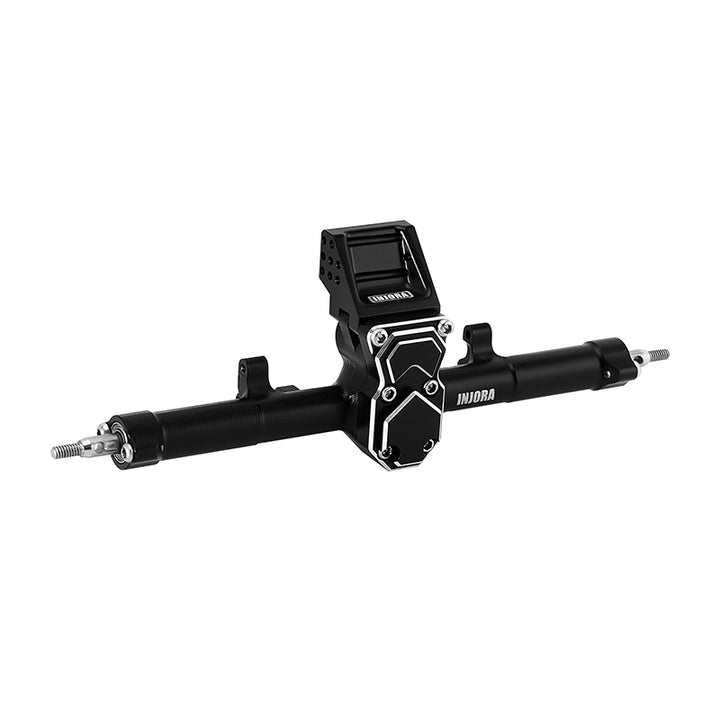

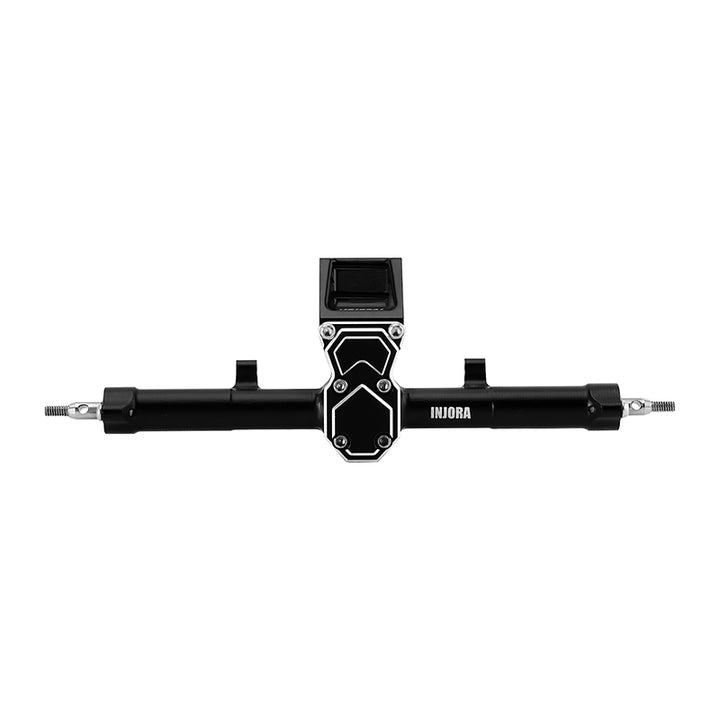

- Rear axle: Just regular +4mm axle and the rear link mount/truss is not included.
- These axles are not compatible with the coarse deep threaded screws on the stock shocks and steering links!
Features:

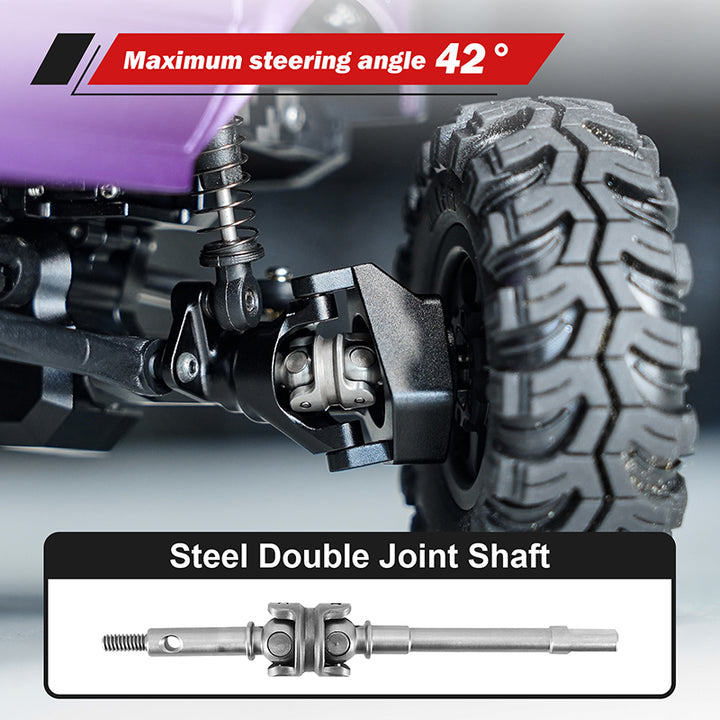

- With double joint shaft will greatly minimize the vibration of the outside front wheel in corners and improves the cornering speed and stability.

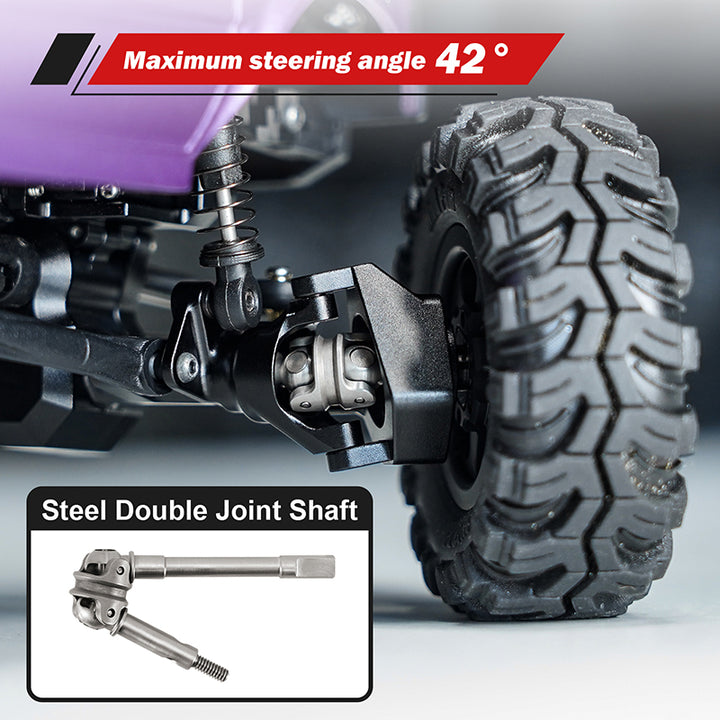

- Maximum steering angle 42°: While double joint shafts can achieve larger steering angles, we've set a limit on the axle to cap the maximum steering angle at 42°, already far exceeding the stock SCX24's 27°. This design enhances maneuverability while ensuring the stability of the axle.

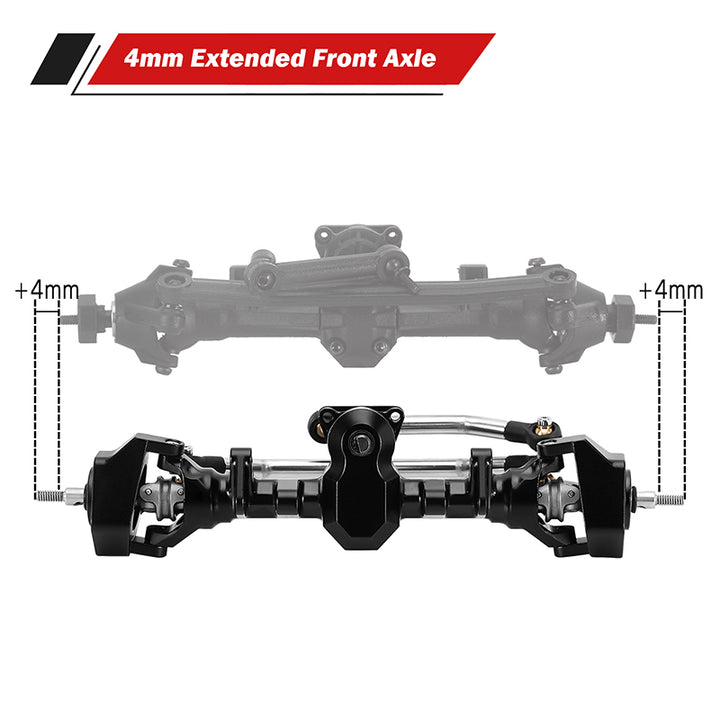

- +4mm extended axles increase the width of each side by 4mm, This helps to increase stability over rough terrain, as well as increase steering clearance to allow a wider selection of tire options.

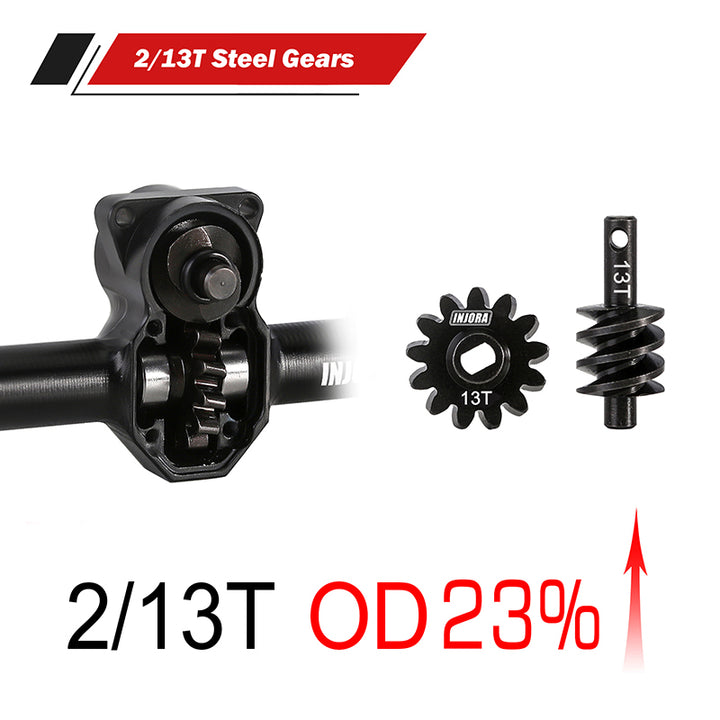

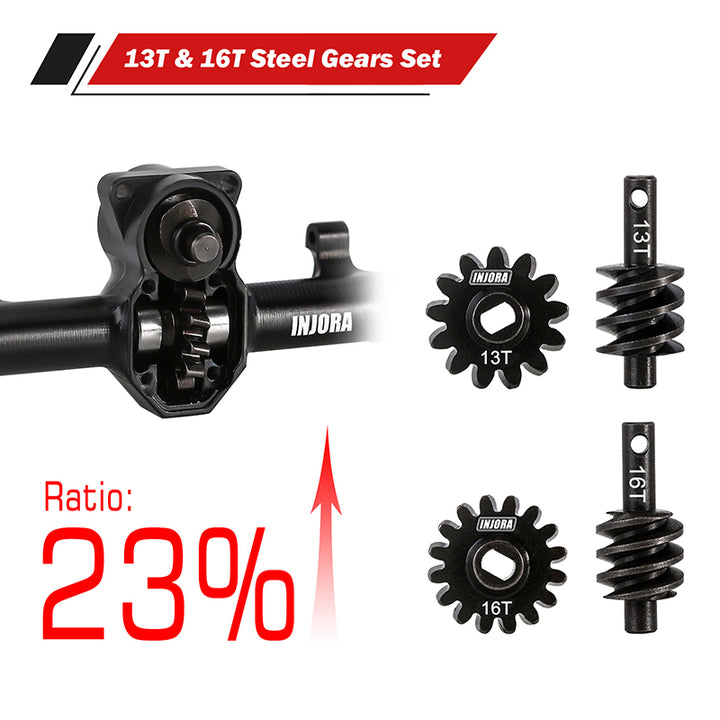

- The front axle comes with 13T(overdrive 23%) gears, Overdrive the front will pull your truck faster in the front, it allows you to climb better and reduce rollover.
Specifications:
- Housing Material: Aluminum
- Steering Links Material: Stainless steel
- Shafts and Gears Material: Steel
- Front Axle Gears: 2/13T, Overdrive 23%
- Rear Axle Gears: 2/16T, Same as stock
- Front Axle Weight: 40g (0.088lb)
- Rear Axle Weight: 22g (0.048lb)

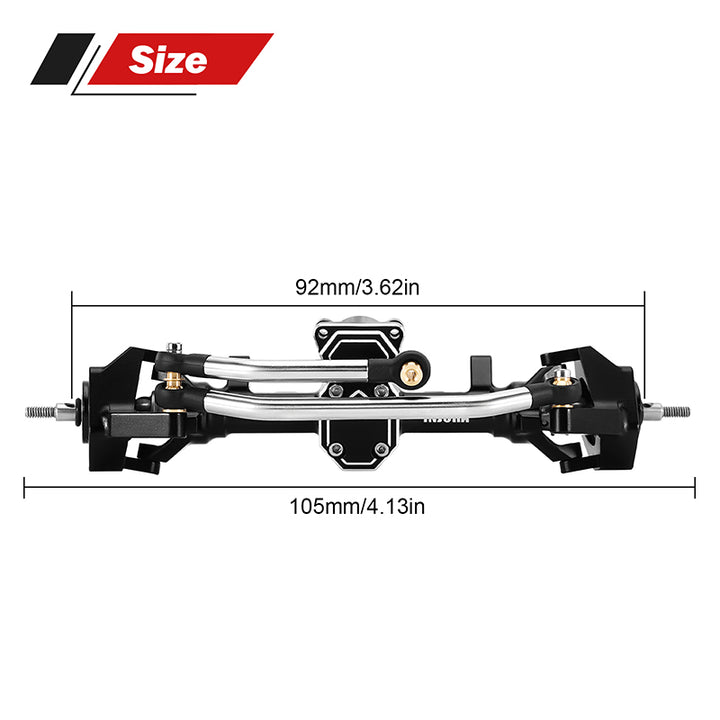

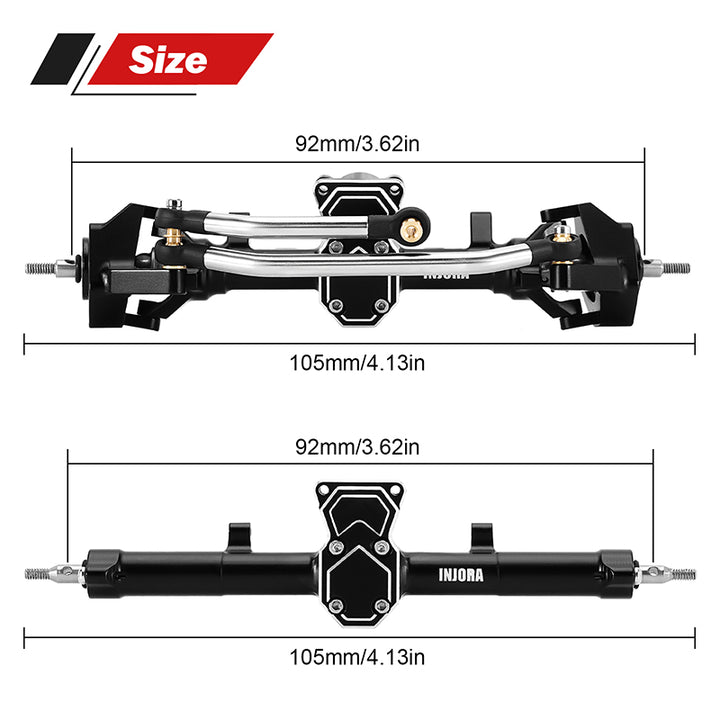

- Overall Length: 105mm (4.13in)
