PRODUCT DETAILS

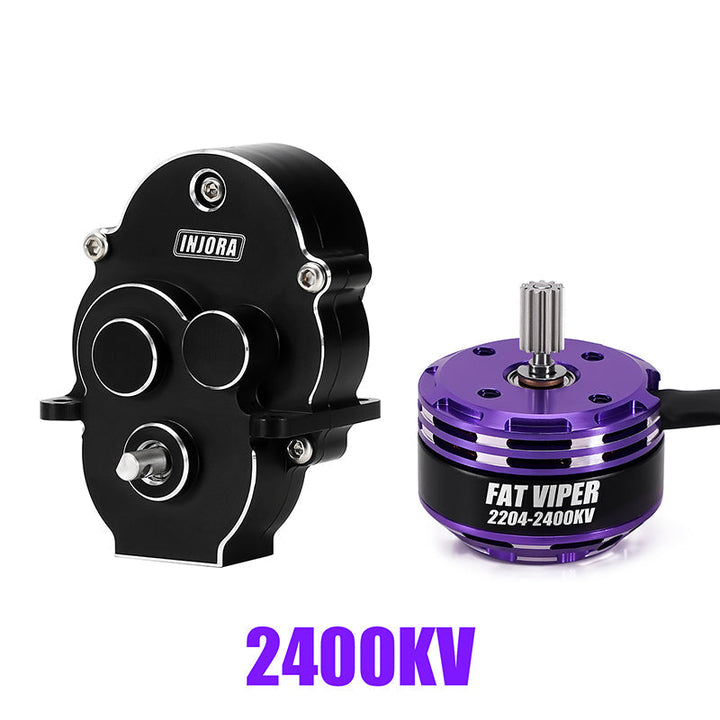

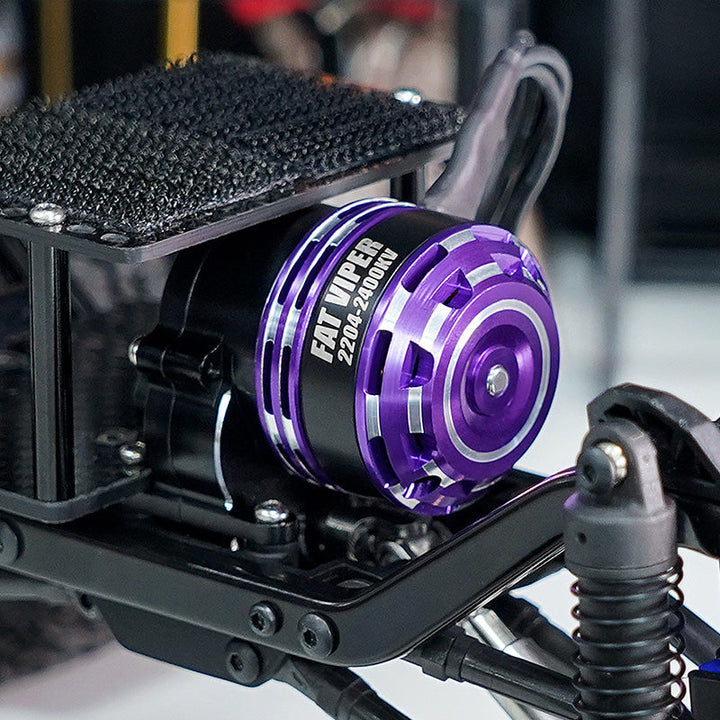

INJORA Fat Viper 2204 Brushless Outrunner Motor & Transmission for 1/18 RC Crawler TRX4M
Note:
- Transmission: Compatible with INJORA 370 transmission. Not compatible with stock transmission!
- ESC: Compatible with INJORA MBL32 brushless ESC. Not compatible with stock ESC!
- 3S batteries are highly recommended for high torque
- The higher the KV value: the higher the speed, the lower the torque
Features:
- Smooth and linear at low speeds, powerful and aggressive at high speeds.
- Runs more quietly than brushed systems, producing virtually no noise.
- 2204 Fat Viper Outrunner Motor will give your car a better driving performance.
MBL32 ESC Specifications:
- Part Number: MBL32
- Max.Current: 30A
- LiPo Cells: 2-3s
- BEC: Max 3A
- BEC Output: 6.0v/7.4V (adjustable by DiP switch)
- Motor Connectors: PH2.0 3Pin
- Dimensions(L*W*H): 30*22*11mm
- Weight: 16g
- Waterproof: No
- The ESC is compatible with most of the receiver and remote combinations that with CH2
- Instruction Manuals
- Please be sure to adjust the MBL32 ESC settings according to the parameters of the 2204 motor as detailed in our Programming Tutorial
- Never plug the battery upside down, otherwise the ESC will immediately burn out！
2000KV Motor Specifications:
- Model Number: 2204
- Motor Type: Sensorless Brushless Outrunner
- RPM/Volt: 2000KV
- Motor Poles: 14
- Sine Mode Power: 7
- Max Power: 2000W
- No-Load Current: 0.5A
- Max Peak Current: 45A
- Motor Connectors: PH2.0 3Pin
- Dimensions: Φ28*19.2mm
- Motor Qutput Shaft: Φ2mm
- Motor Pinion: 0.5mod 12T
- Weight: 28g

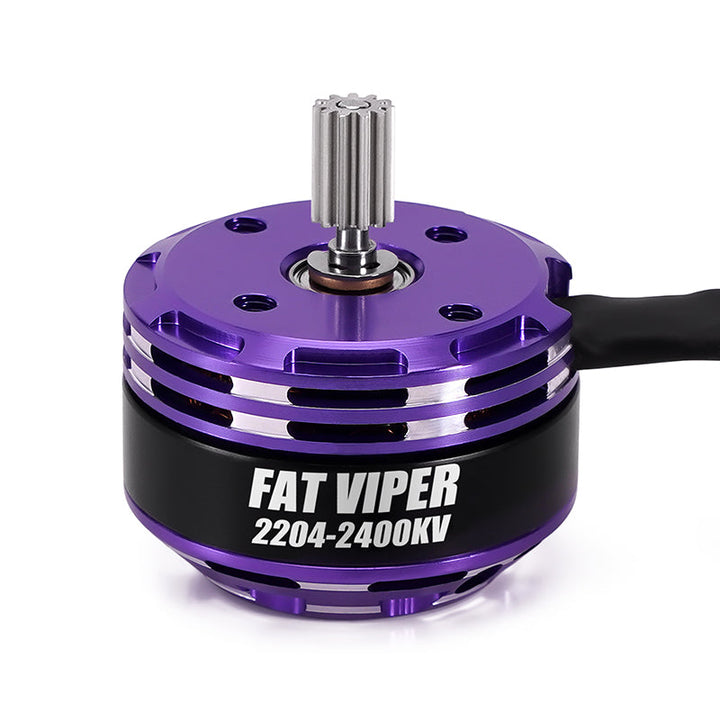

2400KV Motor Specifications:
- Model Number: 2204
- Motor Type: Sensorless Brushless Outrunner
- RPM/Volt: 2400KV
- Motor Poles: 14
- Sine Mode Power: 7
- Max Power: 2500W
- No-Load Current: 0.7A
- Max Peak Current: 50A
- Motor Connectors: PH2.0 3Pin

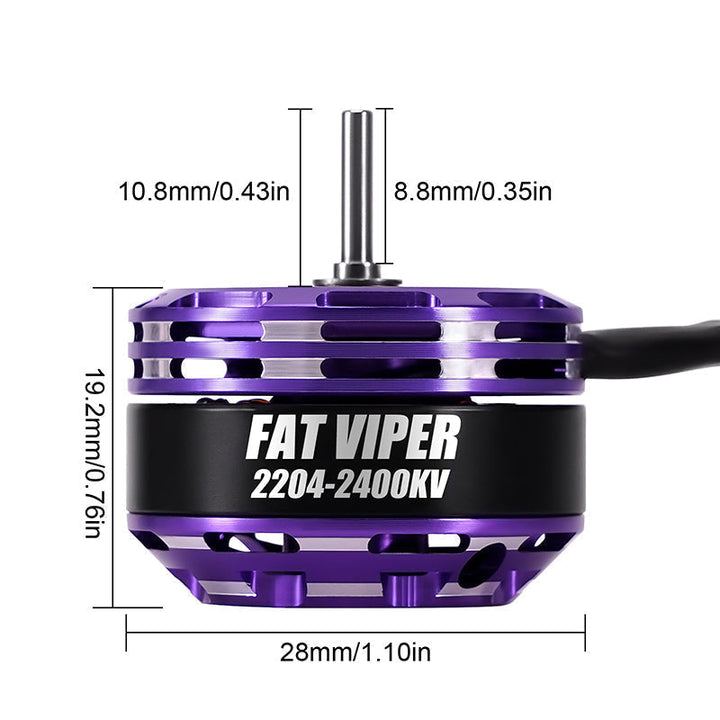

- Dimensions: Φ28*19.2mm
- Motor Qutput Shaft: Φ2mm
- Motor Pinion: 0.5mod 12T
- Weight: 28g

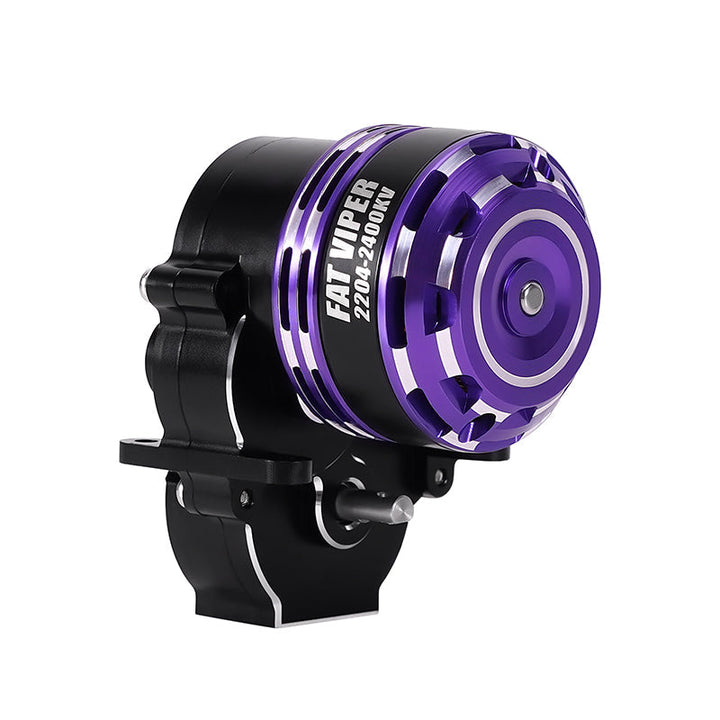

Transmission Specifications:
- Housing Material: Aluminum
- Gears Material: Stainless Steel
- Internal Gears: 24.4:1 gear set, underdrive 32%

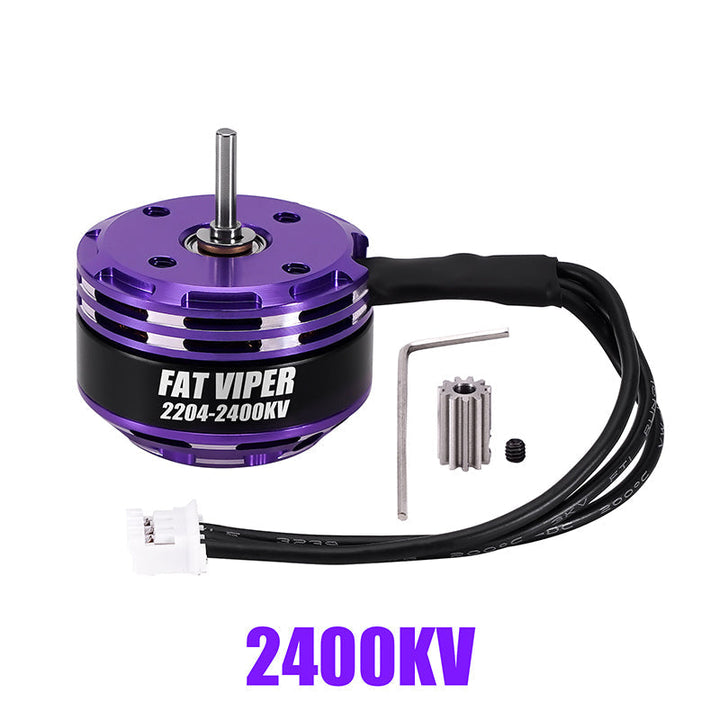

Package List:
- 1 * Fat Viper 2204 Brushless Motor
- 1 * Motor Pinion 11T
