INJORA Fat Viper 2204 Brushless Outrunner Motor with Mount for 1/24 RC Crawler Axial SCX24
Compatibility Notice:
- ESC: Only compatible with INJORA MBL32 ESC and QuicRun Mini24 ESC. Not compatible with other ESCs!
- Transmission: Only compatible with stock SCX24 transmission and INJORA metal transmission
- Chassis: Compatible with INJROA SCX24 LCG carbon fiber chassis. For stock SCX24 chassis, the ESC tray must be trimmed to fit the motor.
- Battery: 3S batteries are highly recommended for optimal performance and smoother low-speed control.
Features:
- Runs more quietly than brushed systems.
- Smooth and linear at low speeds, powerful and aggressive at high speeds.
- 2204 Fat Viper Outrunner Motor will give your car a better driving performance.
2400KV Motor Specifications:
- Model Number: 2204
- Motor Type: Sensorless Brushless Outrunner
- RPM/Volt: 2400KV
- Motor Poles: 14
- Sine Mode Power: 7
- Max Power: 2500W
- No-Load Current: 0.7A
- Max Peak Current: 50A
- Motor Connectors: PH2.0 3Pin
- Dimensions: Φ28*19.2mm
- Motor Qutput Shaft: Φ2mm
- Motor Pinion: 0.5mod 12T
- Weight: 28g
Motor Mount Specifications:
- Housing Material: Aluminum, Carbon Fibre
- Gears Material: Stainless Steel
Internal Gears: 0.5mod 32T
Package List:

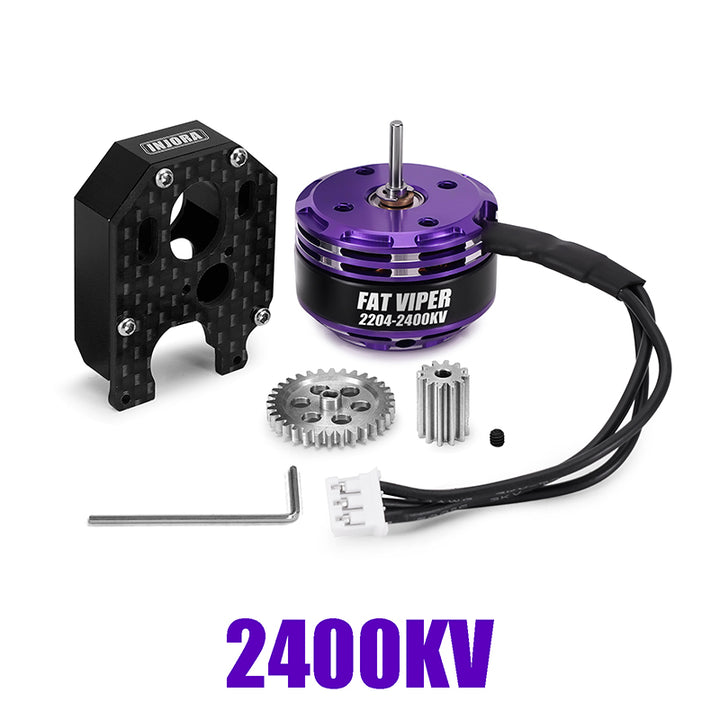

- 1 * Fat Viper 2204 Brushless Motor
- 1 * Motor Pinion(12T) and Tool
- 1 * Motor Mount with 32T Gear
