PRODUCT DETAILS

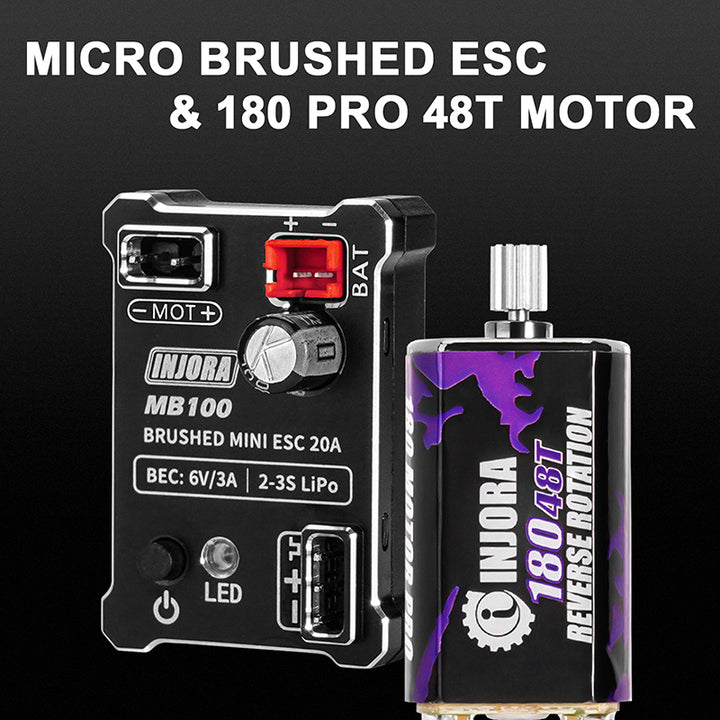

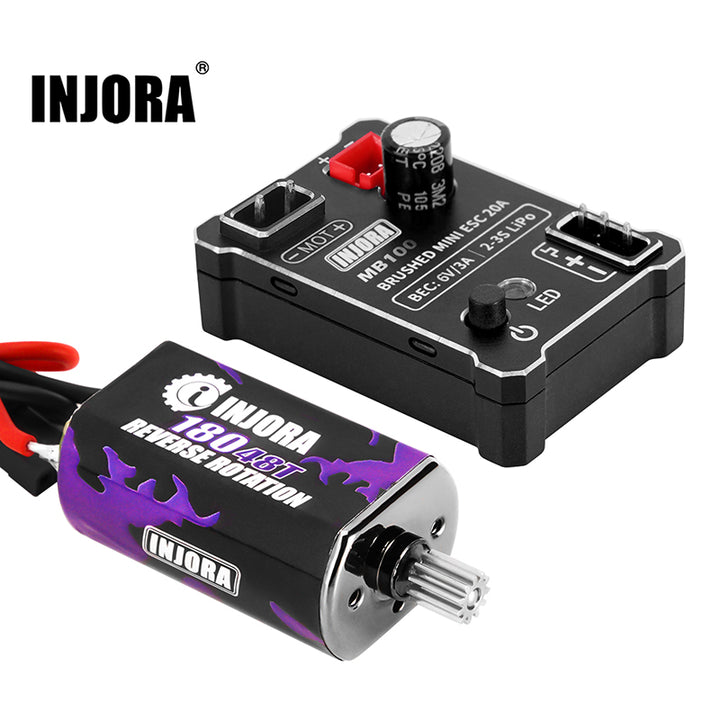

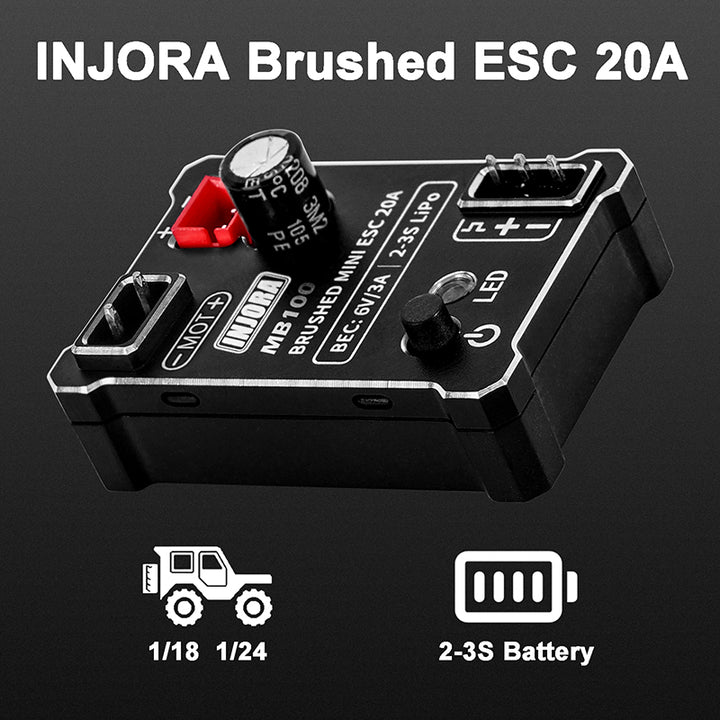

INJORA MB100 20A Brushed Mini ESC with 180 Motor 48T for 1/18 RC Crawler TRX4M Upgrade
Compatible with: 1/18 RC Crawler TRX4M
Features:
1 * INJORA MB100 ESC
1 * INJORA 180 pro Motor
Compatible with: 1/18 RC Crawler TRX4M
Features:

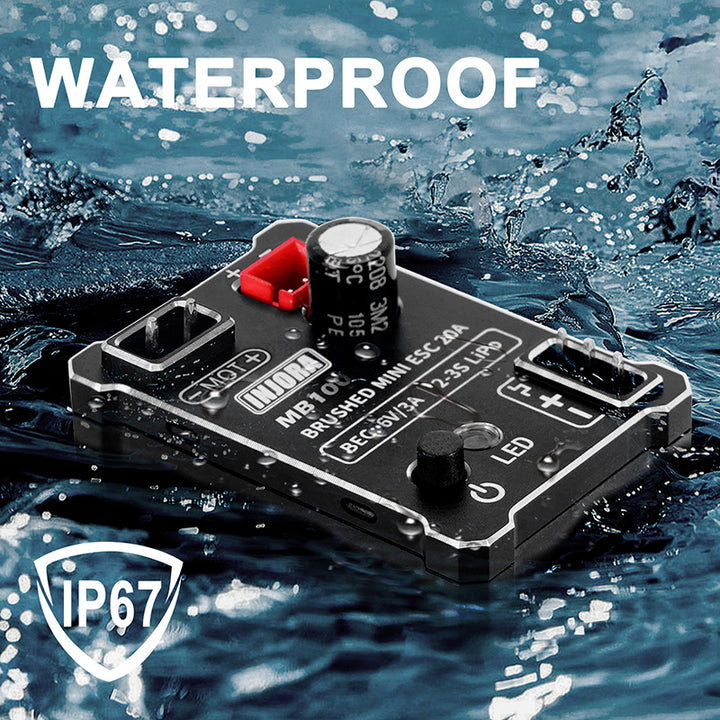

- ESC is IP67 waterproof ratings fully waterproof design
- Motor waterproof rating: IPX6 (It can run in the rain, or run underwater for a while.)

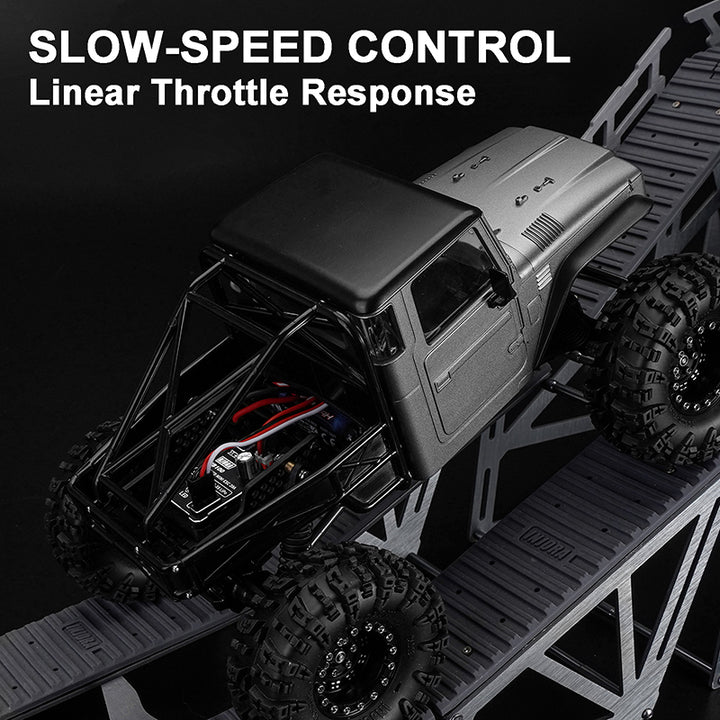

- Linear throttle response gives you more control and smoother driving experience
- Multiple Protection: battery low-voltage protection, over-heat protection, throttle signal loss protection, BEC over current protection, and short circuit protection
- Stronger drag brake and torque delivery than stock motors

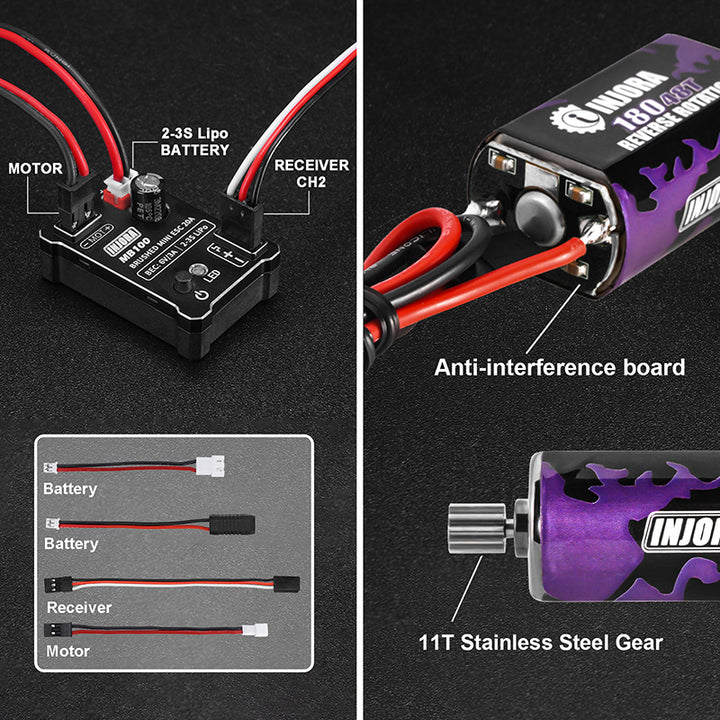

- Pinion and wiring are installed for placement into TRX4M
- DEO（Dynamic Electronic Overload) provides smoother power delivery, better control, and overload protection for improved performance in RC Crawlers and similar vehicles.
- Come with a built in 6V BEC
- Continuous / Peak Current: 20A / 100A
- BEC Output: 6V/3A (linear Mode)
- Motor Type Support: Brushed Motor ( 030 / 050 / 130 / 180 / 370 )
- Battery Cells: 2-3S Lipo
- Size: 37mm*22mm*10mm
- Weight: 15g (0.53oz)
- Turn: 48T
- Rated Voltage: 7.4V
- Total Length: 42.7mm (1.68in)
- Motor Magnets: Neodymium magnets (Higher Torque)
- Pinion Material: Stainless Steel
- Pinion: 11T 0.4mod
- Weight: 39g (1.38oz)
- At No Load Speed: 20500rpm
- No Load Current: ≤0.48A
1 * INJORA MB100 ESC
1 * INJORA 180 pro Motor
