PRODUCT DETAILS
INJORA Brushless Micro MBL32 ESC & 1721 Purple Viper Motor for 1/18 TRX4M
Note:

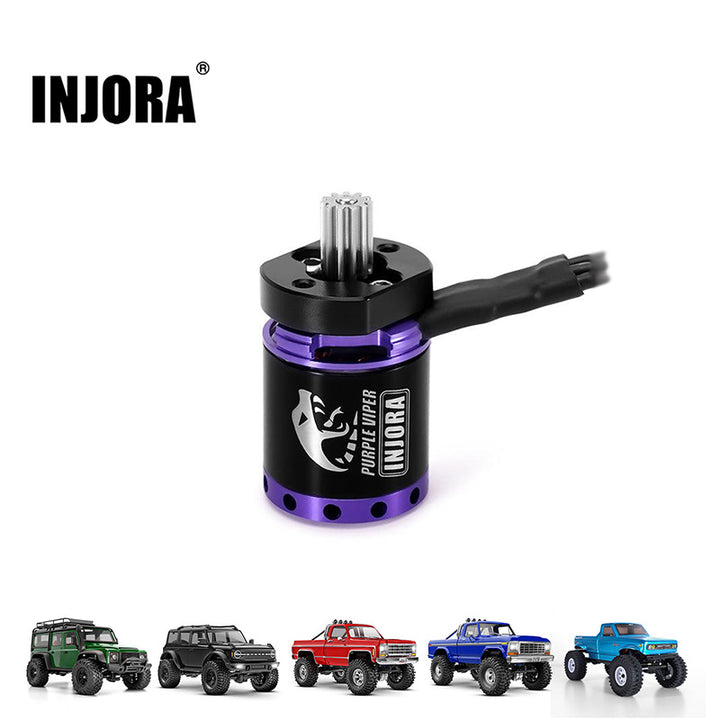

- The motor is only compatible with: 1/18 TRX4M, 1/18 Redcat Ascent18
- Not compatible with 370 gearbox!
- The ESC is compatible with most of the receiver and remote combinations that with CH2
- Never plug the battery upside down, otherwise the ESC will immediately burn out！
- Please program the ESC according to the motor specifications! Programming Tutorial
- Instruction Manuals
If your transmitter does not control the car well, please try these:
- If you are using a 2S battery, please set the BEC output to 6.0V using the DIP switches. Different settings are required for 2S and 3S batteries!
- Before powering on, set the transmitter's throttle trim to 0% at neutral.
- Increase the distance between the transmitter and the car to avoid signal interference.
- For optimal performance, we recommend using a 3S Lipo battery.
Features:
- INJORA MBL32 ESC based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
- The MBL32 ESC features a built-in BEC with adjustable output: 6V/7.4V
- Smooth and linear at low speeds, powerful and aggressive at high speeds.
- Runs more quietly than brushed systems, producing virtually no noise.

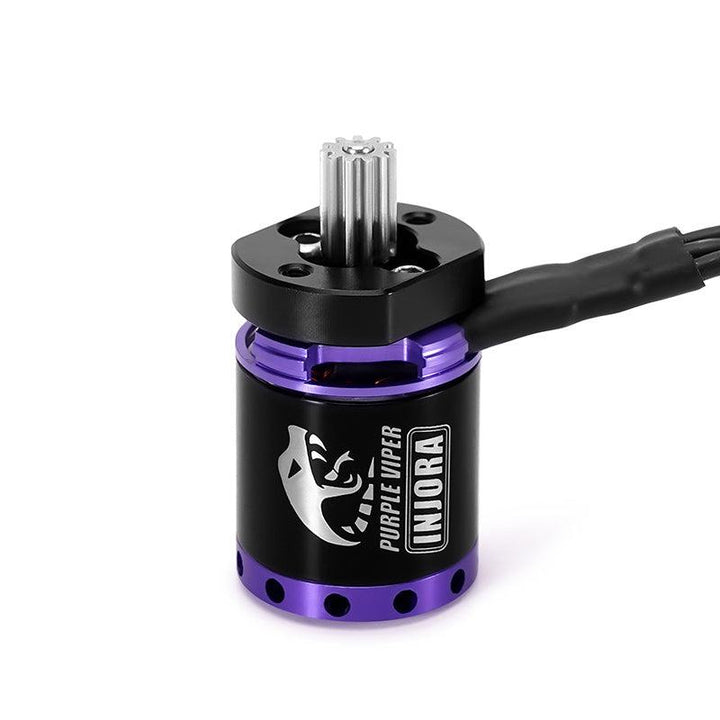

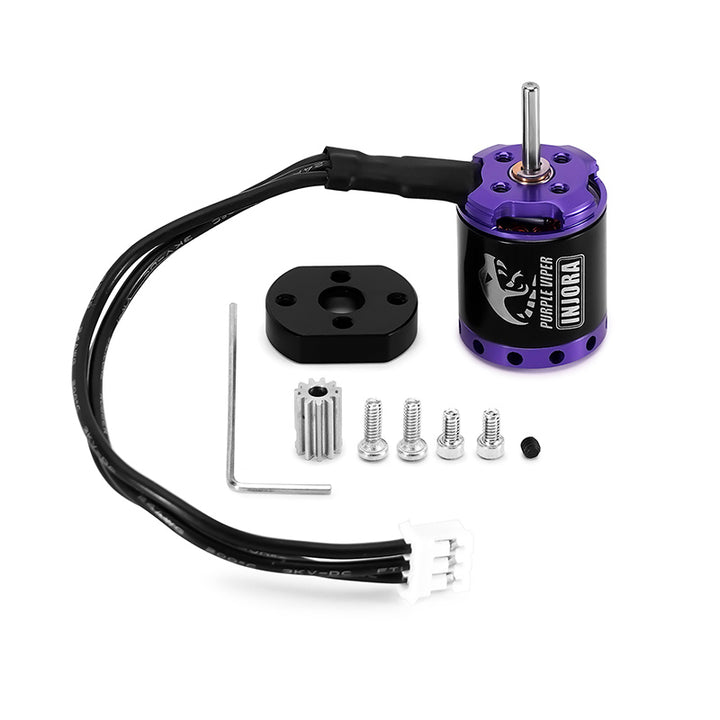

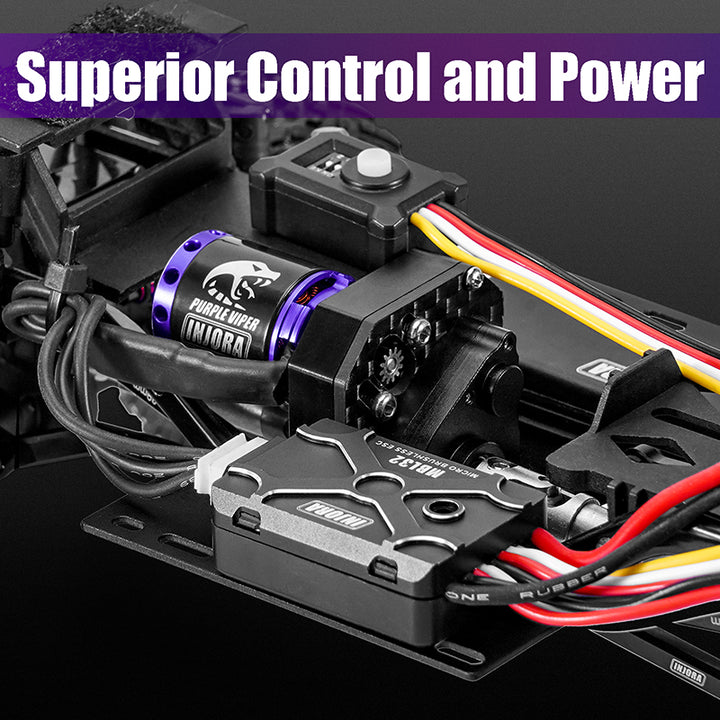

- 1721 Purple Viper outrunner motor, equipped with a mounting plate to mount the motor on the TRX4M transmission.
- Plug-and-Play Convenience: Includes multiple adapter cables for different battery connectors.
ESC Specifications:
- Part Number: MBL32 (MBL: Micro Brushless)
- Max.Current: 30A
- LiPo Cells: 2-3s
- Compatible Motors: INJORA 1721/2204
- Applications: 1/18 1/24 RC Crawlers
- BEC: Max 3A
- BEC Output: 6.0v/7.4V (adjustable by DIP switch)
- Motor Connectors: PH2.0 3Pin
- Dimensions(L*W*H): 30*22*11mm
- Weight: 16g
- Waterproof: No
Motor Specifications：

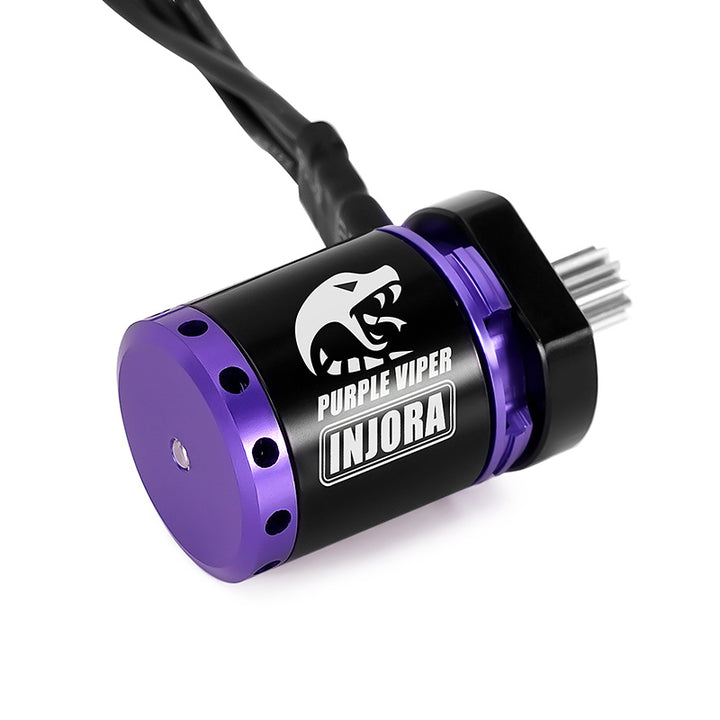

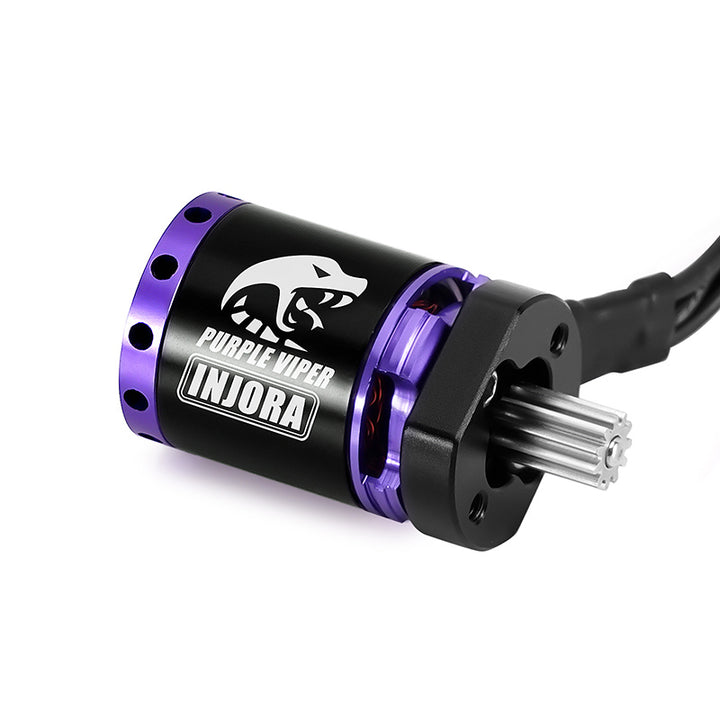

- Model Number: 1721
- Motor Type: Sensorless Brushless Outrunner

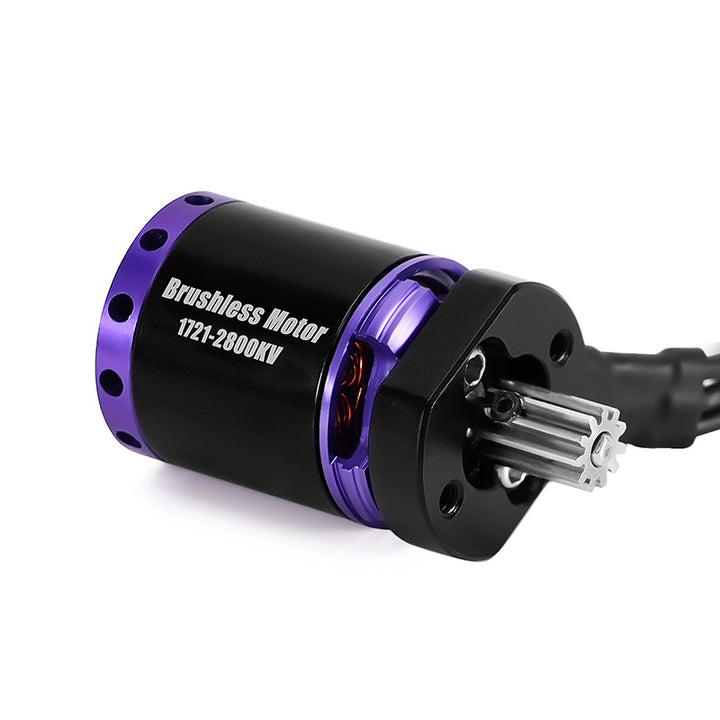

- RPM/Volt: 2800KV
- Motor Poles: 14
- Sine Mode Power: 7
- No-Load Current (11.1V): 0.7A
- Max Peak Current: 30A
- Motor Connectors: PH2.0 3Pin

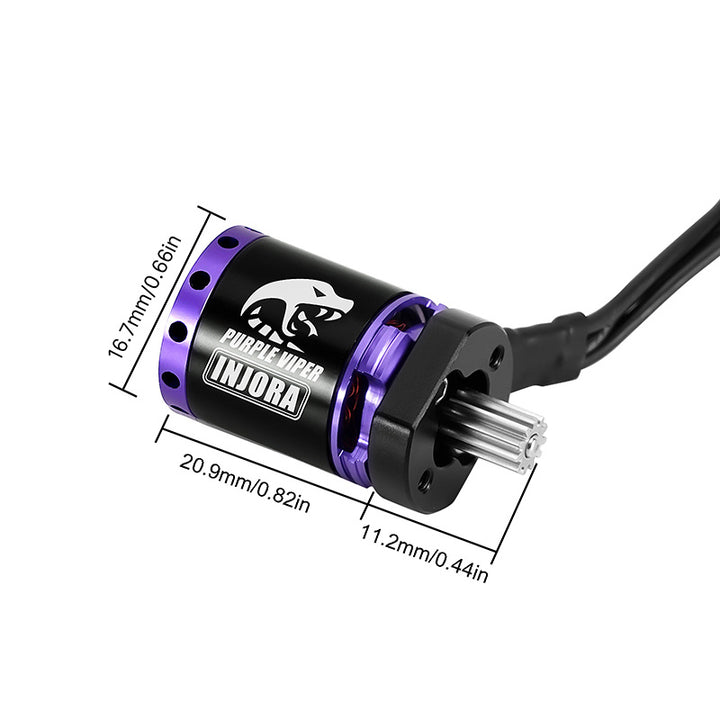

- Dimensions: Φ16.7*20.9mm
- Motor Qutput Shaft Diameter: Φ2mm
- Motor Pinion: 0.4mod 11T
- Weight: 19g
- Waterproof: Yes
