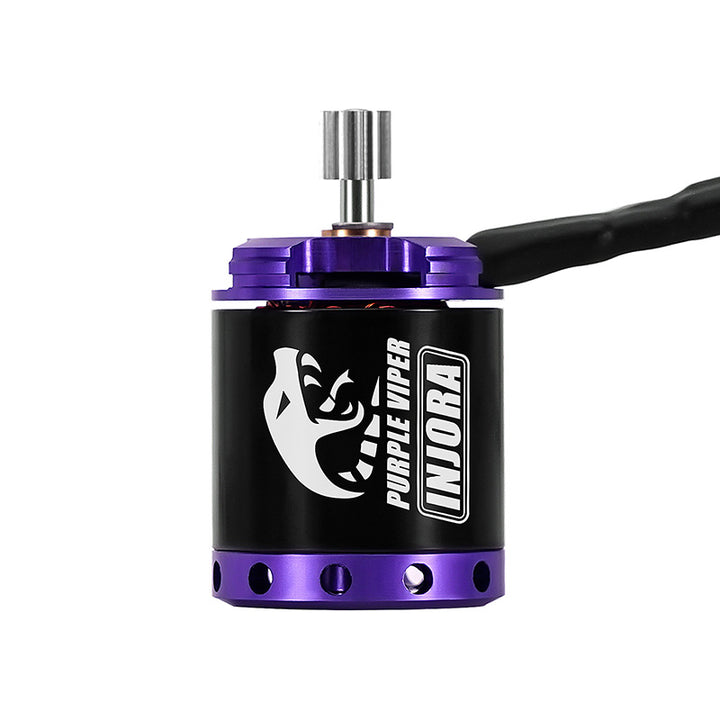

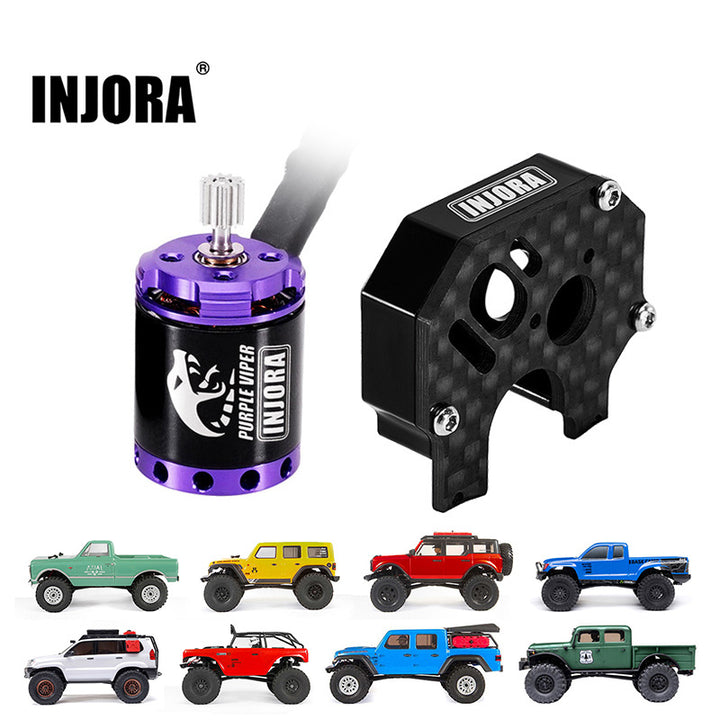

INJORA Purple Viper 1721 Brushless Motor for 1/24 SCX24

INJORA Purple Viper 1721 Brushless Motor for 1/24 SCX24

Compatibility Notice:

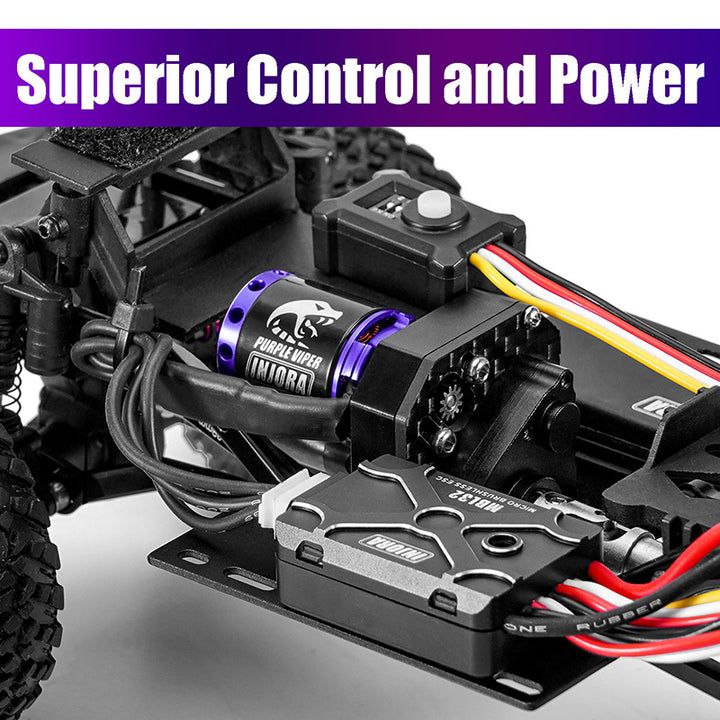

• ESC: Only compatible with INJORA MBL32 ESC and QuicRun Mini24 ESC. Not compatible with other ESCs!
• Transmission:  Only compatible with stock SCX24 transmission and INJORA metal transmission
• Chassis: Not compatible with carbon fiber chassis with angled skid plate. For stock SCX24 chassis, the ESC tray must be trimmed to fit the motor.
• Battery: 3S batteries are highly recommended for optimal performance and smoother low-speed control.

Features:

• Smooth and linear at low speeds, powerful and aggressive at high speeds.
• Runs more quietly than brushed systems, producing virtually no noise.

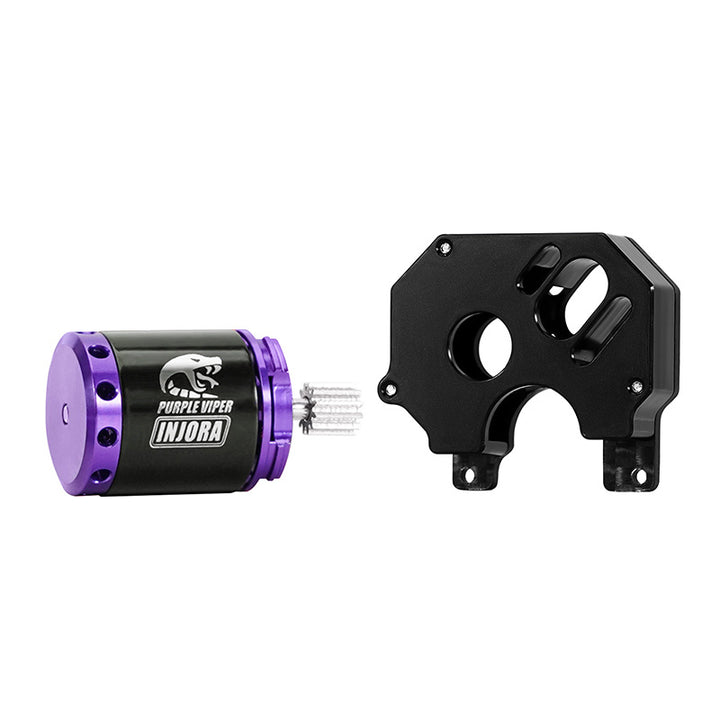

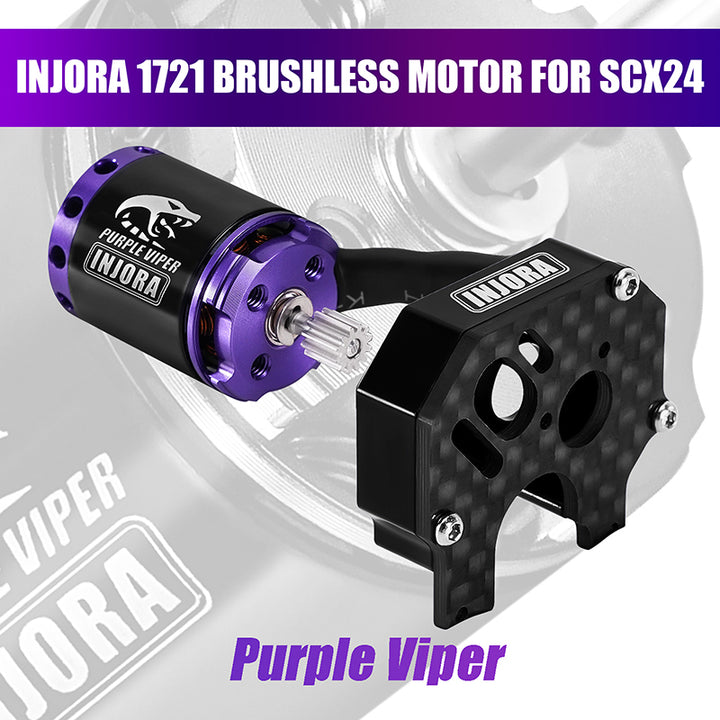

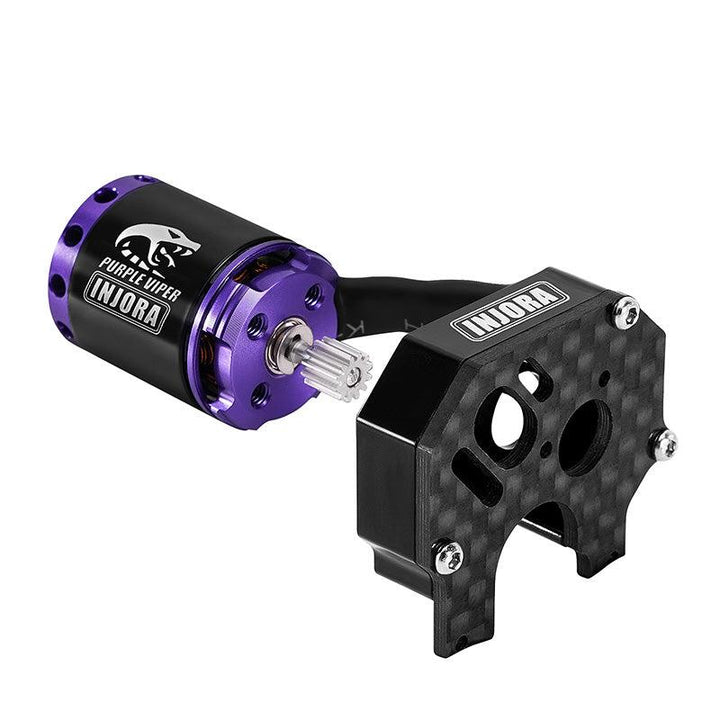

• Equipped with a mounting plate to mount the motor on the SCX24.


1721 Motor Specifications:

• Model Number: 1721
• Motor Type: Sensorless Brushless Outrunner
• RPM/Volt: 2800KV
• Motor Poles: 14
• Sine Mode Power: 7
• No-Load Current (11.1V): 0.7A
• Max Peak Current: 30A
• Motor Connectors: PH2.0 3Pin

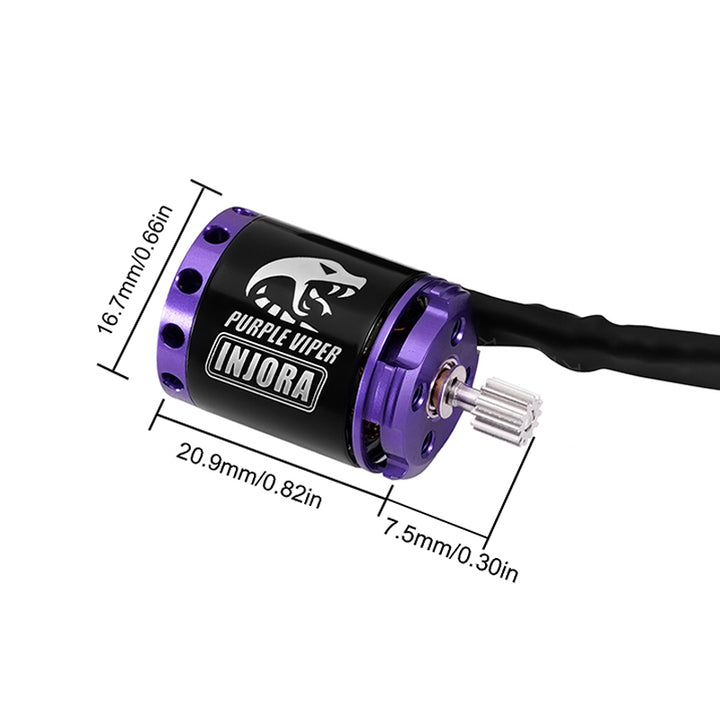

• Dimensions: Φ16.7*20.9mm
• Motor Qutput Shaft: Φ1.7mm
• Motor Pinion: 0.3mod 12T
• Weight: 19g
• Waterproof: Yes

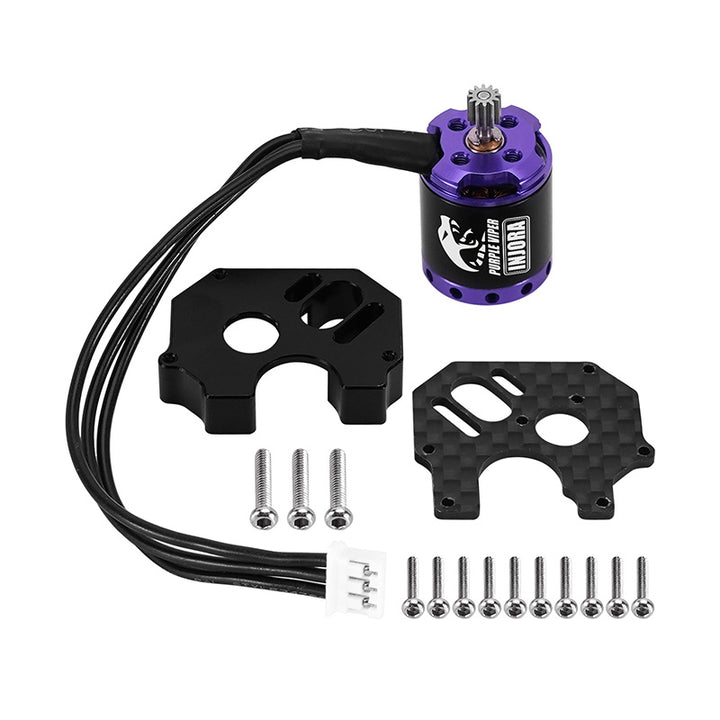

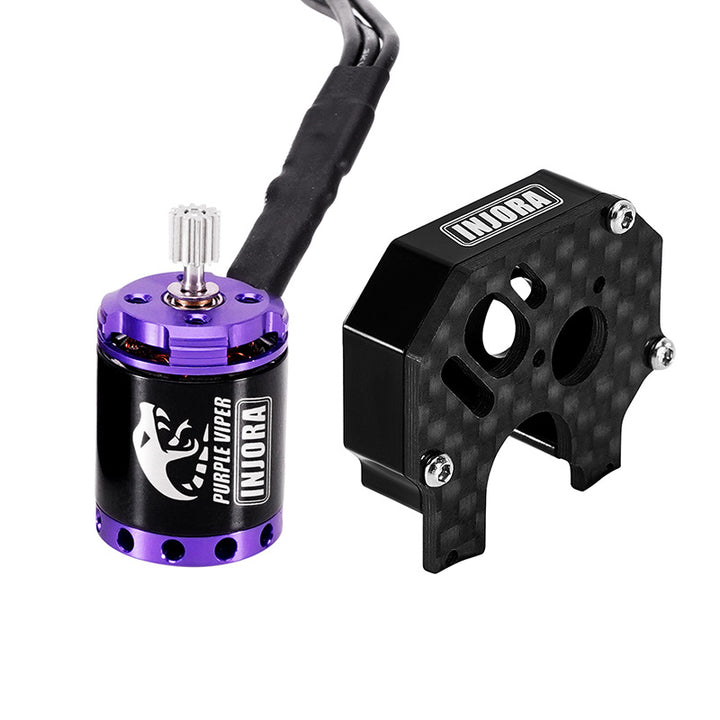

Package List:

• 1 * 1721 Brushless Motor
• 1 * Motor Mount
